Volume Six - Pre-Victorian to the Present Day - Select Aspects - The subway under the river Ely story . . .

Map of River Ely subway, Penarth Dock
The route of the subway and the former chain ferry in relationship to the dock superimposed upon the OS map of c.1920. [009] [010] [060]

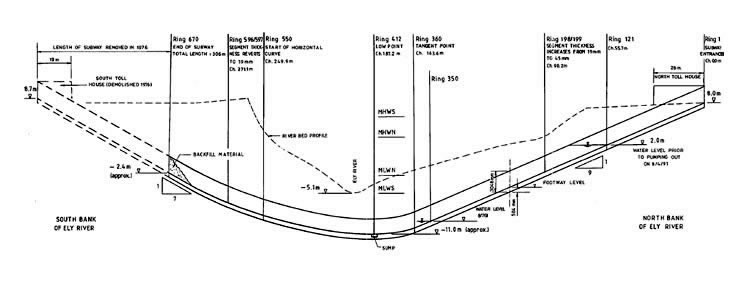

Cross-section of River Ely subway - depth under the river.
The longitudinal cross-sectional drawing of the path of the subway in relation to Spring and Neap tides, high and low water levels and an Ordnance datum level. The gradient was quite steep at 1:7 and I recall you could get an exhilarating speed up on your Raleigh bicycle (especially without working brakes and lights) in one direction but a little slower going uphill; it was then that a cold shiver ran down your spine as you do moved your head from side to side to dodge the light bulbs, aware that a moments loss of concentration may result in you headbutting a bulb that had burnt out! [009] [060]

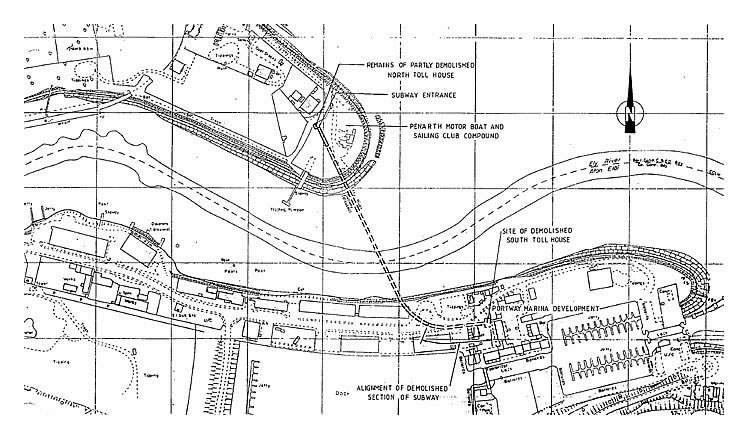

A drawing of the site in May 1991 showing the path of the subway - River Ely, Penarth Dock
A drawing of the site in May 1991 showing the path of the subway, the remains of the northern toll house and the location of the demolished section of subway on the Penarth Dock side of the river. [009] [060]
