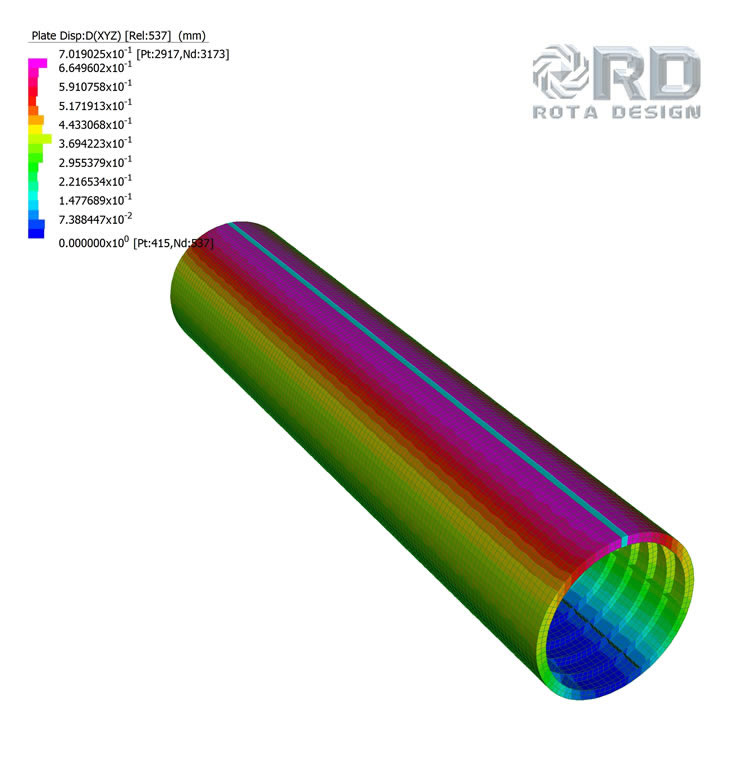

A plot prepared at Rota Design Limited of the finite element model of the cylindrical subway when under the loading from the surrounding clay and gravels plus the water up to the Spring tide high water average level. The maximum displacement of the subway is the mauve area at the top of the structure where the deformation is 0.7 mm. [108]
