Penarth Dock, South Wales - the heritage and legacy

Volume Nine - Pre-Victorian to the present day - even more aspects - Penarth Dock Infrastructure - Building, Repair & Maintenance Aspects . . .

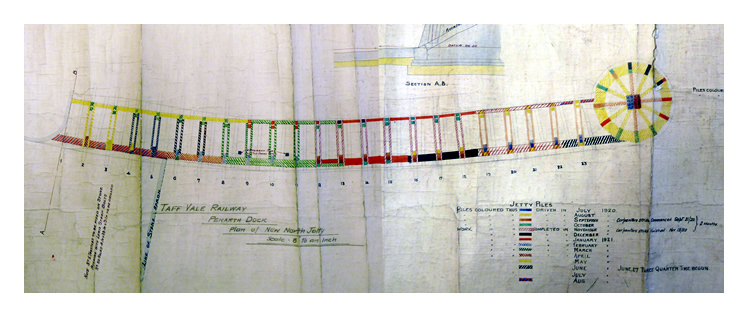

1920-1921 - The GWR drawing of the northern jetty at Penarth Dock indicating the delays and timescale for construction.

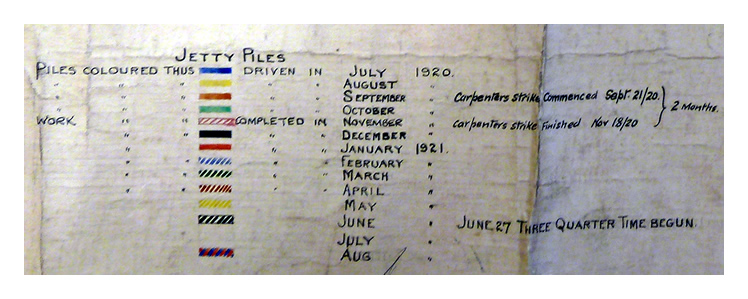

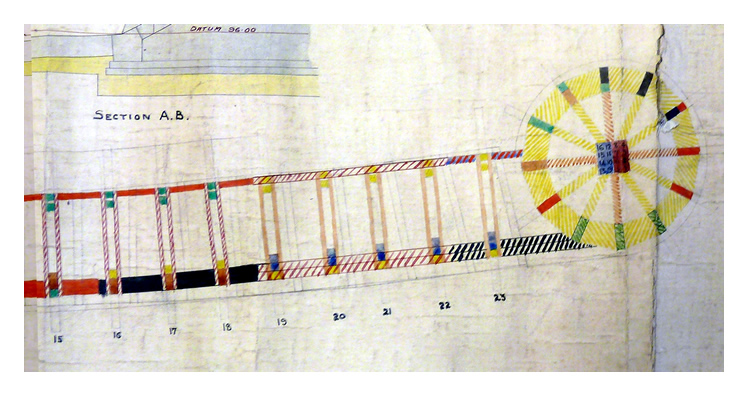

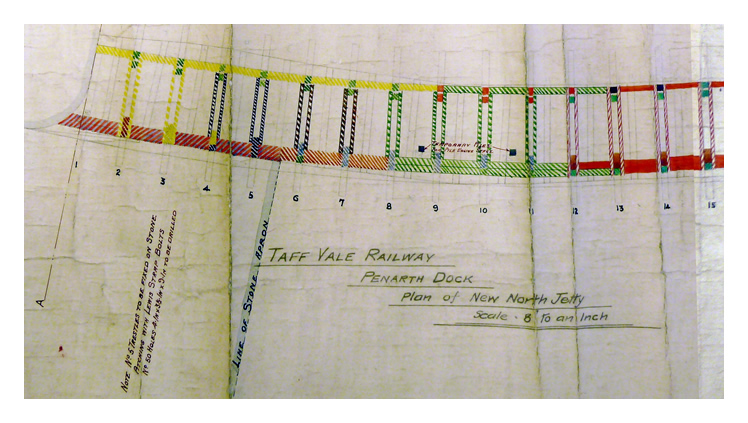

1920-1921 - The GWR drawing of the northern jetty at Penarth Dock indicating the delays and timescale for construction July 1920 thru August 1921. The sequence of jetty piles driven between July and October and their completion date is recorded within the drawing.

The original of this drawing is held at the archive of the National Museum of Wales. [Museum item number : 88.88I/15] [629] [20180514]
