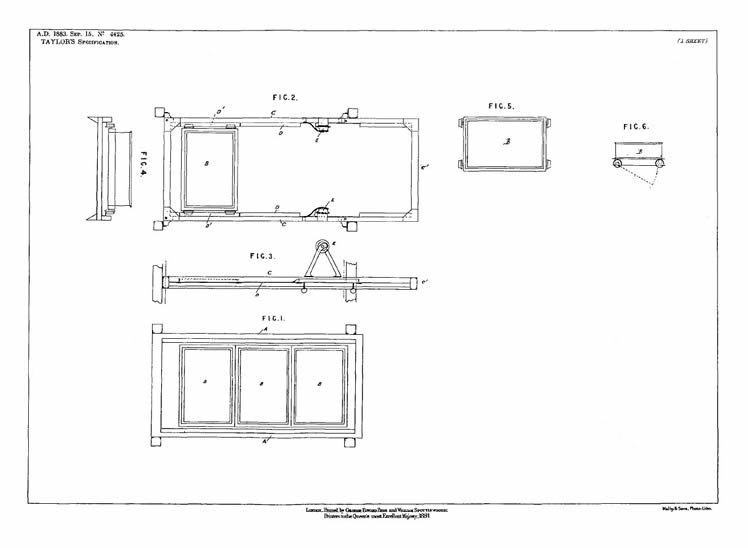

Figures 1 through to 6.

Figure 1 is a plan of the lower framing supporting the receivers at the receiving level.

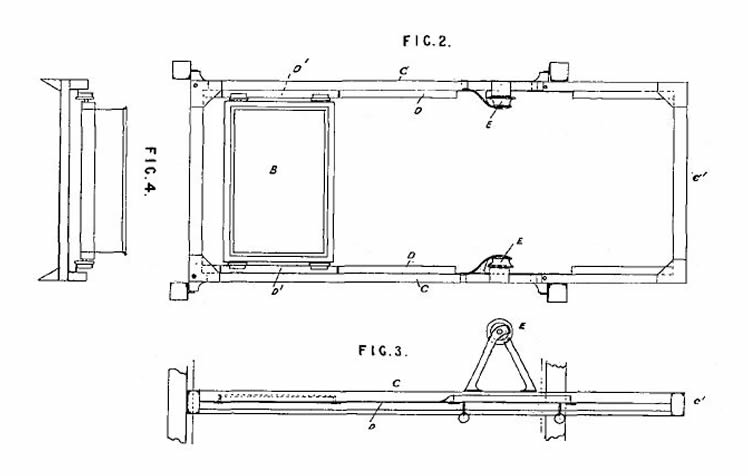

Figure 2 is a plan,
Figure 3 is a side elevation and
Figure 4 an end elevation of the framing supporting the receivers at the discharging level.
Figures 5 and 6 are a plan and side elevation of one of the receivers.
