Volume Six - Pre-Victorian to the Present Day - Select Aspects - Structural Analysis of the river Ely Subway by Rota Design Limited - 2015

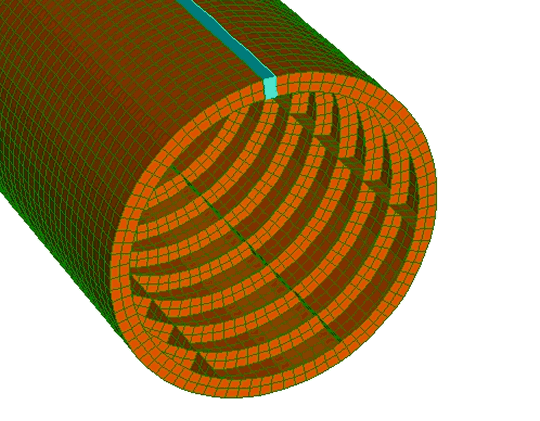

An animation of the river Ely subway under the load of soil and water at high tide by Rota Design Limited. The changing colours show how the structure deforms under the load but this deformation has been scaled up to show more clearly the change in shape of the cast iron rings. [108]
